Fillet
The fillet tool creates a rounded edge from two lines that end in a corner, intersect, or nearly intersect. The size of a fillet is determined by its radius.

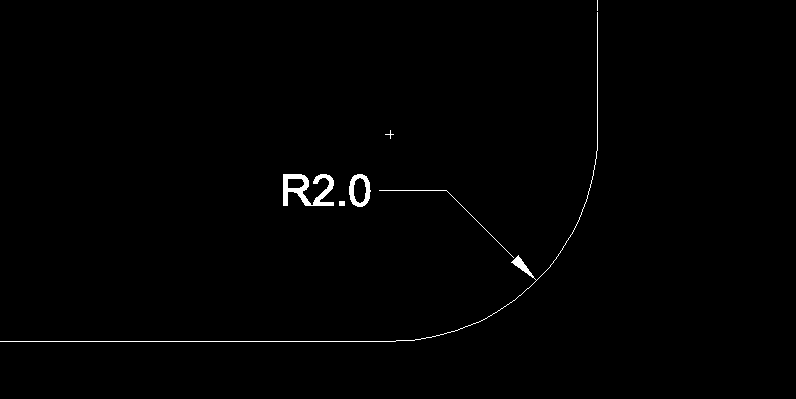

In the image above we see a corner that has been filleted on a 2 unit radius.
First, select the fillet tool, then enter r to change the radius. Enter the desired distance for the radius and then specify the two entities on which to create the radius.
Fillet Quick Reference | |
Command |
fillet |
Alias |
f |
Menu bar |
Modify⇢ Fillet |
|
Command Window Example |
Creates a fillet on a 2 unit radius: : fillet Options: Multiple, Polyline, Radius... Specify first line>> r Specify first distance>> 2 Specify first entity>> <select first entity> Specify second entity>> <select second entity> : |
