Chamfer

The chamfer tool is used to make beveled corners. In our context, it can be used to make vertical chamfers on the corners of counter tops.

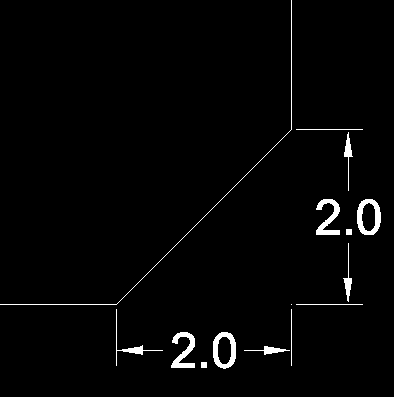

In the image above we see the chamfered corner of a counter top. When creating a chamfer, you will need to specify the first and second distance. This distance is the distance from the corner to the start of the chamfer. In the image above is a two unit chamfer. You can specify unique distances for each measurement, if desired.


To create a chamfered corner, execute the chamfer, then use the d option to set the chamfer distances. Then select the first line (which will use the first distance), and then select the second line.


Chamfer Quick Reference

Command

chamfer

Alias

cha

Menu bar

Modify⇢ Chamfer

Command Window Example

Creates a chamfer 2 units from the corner:

: chamfer
Options: Angle, Distance, mEthod...
Specify first line>> d
Specify first distance>> 2
Specify second distance>> <press enter to make same as first>
Specify first line>> <click on first line>
Specify second line>> <click on second line>
:
